Finsh Translation and View Gerbers.
That's It, EasyGerb is Done!
You can now send out the newly created Gerber files to your photoplotter, fabrication shop, or CAM software (for Viewing, Editing, etc.).
Note: The EasyGerb Finish dialog displays a report containing a count of all objects translated, and a list of the gerber files created with EasyGerb.

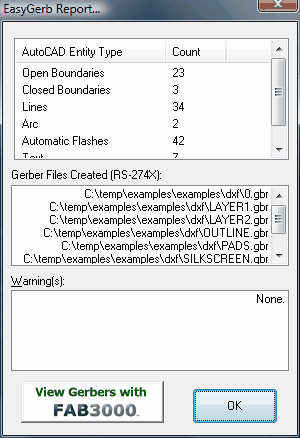

(Screen capture of EasyGerb Finish dialog)
View Gerbers With FAB 3000
If you have installed FAB 3000 on your system, EasyGerb will automatically display all Gerber files created - with just the click of a button!
Note: FAB 3000 is our high-end Gerber/CAM solution created.
Note: FAB 3000 is completely compatible with EasyGerb, and there is a button provided on the Finish dialog which allows automatic viewing of Gerber and Drill files created from EasyGerb.
View Gerbers With Other Gerber Viewers & Products
Gerber files output from EasyGerb are 100% comaptible with all high-end gerber products. Simply start the Gerber software product, Import, and select the gerber files created by EasyGerb.
Note: Please be careful when viewing gerbers. There are some low-end Gerber products and viewers that are not "correctly crafted" and thus do not display many gerber attributes correctly, such as Composite (Dark/Clear), Arcs, Step and Repeat, Custom Apertures, and more... They may give you bad results.
Note: To ensure that you are correctly verifying your gerber files, we recommend using FAB 3000. It is our high-end Gerber/CAM solution created for EasyGerb.
